Chapter 6: Cameras, Coordinates, and Calibration

6.1 Cameras

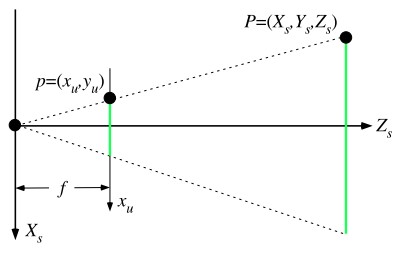

Central Projection Equations

Figure: Projection

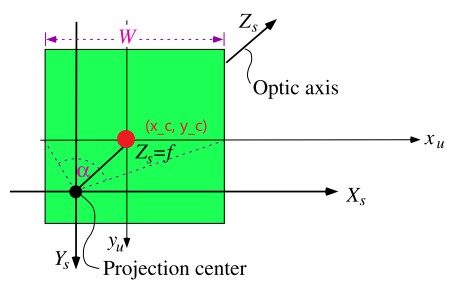

The Principle Point

Let $(c_x, c_y)$ be the intersection point of the optical axis with the image place in $xy$ coordinates

Figure: Intersection Point

Then for $xy$ coordinates in the image plane with the origin point $(c_x, c_y)$, the corrodinates of a point becomes: \(\tag{6.3}(x,y)=(x_u+c_x,y_u+c_y)=\bigg(\frac{fX_s}{Z_s}+c_x,\frac{fY_s}{Z_s}+c_y\bigg)\)

Two-Camera System

A 3D point $P=(X_s,Y_s,Z_s)$ in this system will be: \(\tag{6.4}p_{uL}=(x_{uL},y_{uL})=\bigg(\frac{fX_s}{Z_s},\frac{fY_s}{Z_s}\bigg)\)

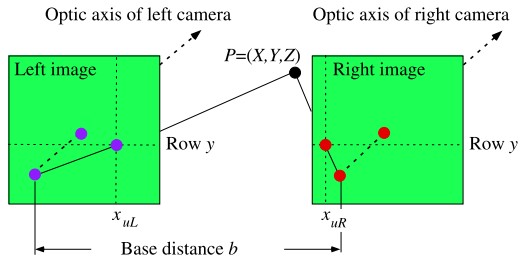

Figure: Canonical Stereo System

6.2 Coordinates

6.2.1 World Coordinates

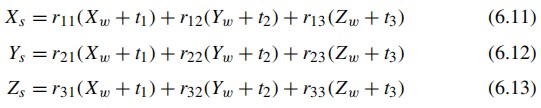

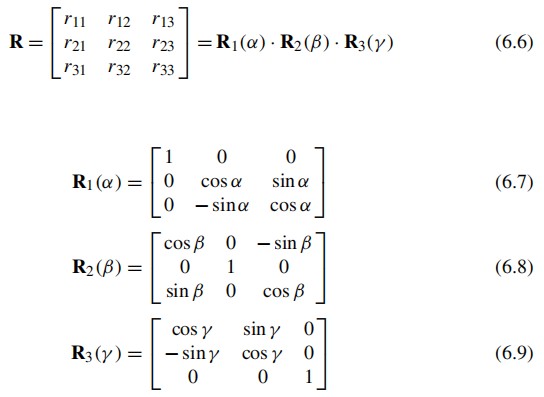

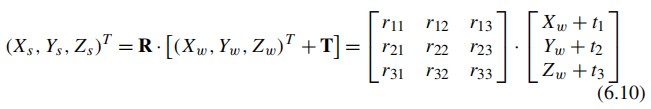

Affine Transform

Figure: Affine From World to Camera

</div>

</div>

</div>

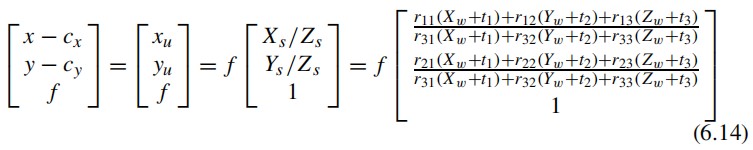

Projection from World Coordinates into an Image

</div>

6.2.2 Homogeneous Coordinates

Inhomogeneous coordinates in 2D: $(x,y)$
Homogeneous coordinates in 2D: $(x’,y’,w)$

An affine could be made frome homo- to inhomo- \(x=x'/w\text{ and }y=y'/w\)

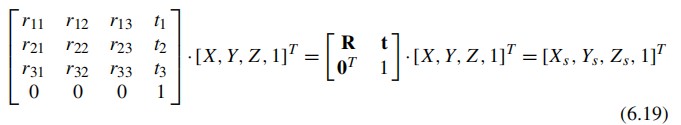

Benefits of homo-: use just one matrix multiplication to replace one matrix multiplication plus one vactor addition in inhomogeneous coordinates

</div>

Lines in 2D Plane

Define $\gamma=(a,b,c)$ represent the line $ax+by+c=0$, then for two lines $\gamma_1=(a_1,b_1,c_1), \gamma_2=(a_2,b_2,c_2)$, there intersection point is: \(\tag{6.16}\gamma_1\times \gamma_2=(b_1c_2-b_2c_1,a_2c_1-a_1c_2,a_1b_2-a_2b_1)\)

Explain：

1. 二维平面中的点 $(x,y)$ 可以映射至三维空间中的一条穿过原点的直线，该直线与平面 $z=1$ 相交于 $(x, y, 1)$
2. 定义三维空间中的的平面 $P=(a,b,c,d),\;ax+by+cz+d=0$，则同理二维平面中的直线 $(a,b,c)$ 可以映射为三维空间中的一个穿过原点的平面 $(a,b,c,0)$
3. 两个穿过原点的平面的交线一定过原点，且方向与两平面的法向量垂直 $direction=(a_1,b_1,c_1)\times(a_2,b_2,c_2)$，因此这条线与平面 $z=1$ 相交于 $(b_1c_2-b_2c_1,a_2c_1-a_1c_2,a_1b_2-a_2b_1,1)$
4. 最后映射回二维平面，可得 Eqn.6.16 中的交点公式

Two Points Define One Line

In homogeneous coordinates, two points $p_1=(x_1,y_1,w_1),p_2=(x_2,y_2,w_2)$ defines a line which acrosses them: $p_1\times p_2$

Explain：

1. 同上，$p_1$ 可映射至三维空间中经过原点、且与平面 $z=w_1$ 相较于 $(x_1,y_1,w_1)$ 的直线，$p_2$ 同理
2. 在三维空间中，这两条直线能够定义一个穿过原点、法向量为 $p_1\times p_2$ 的平面
3. 在映射回二维平面，可得对应的直线公式

6.3 Camera Calibration

6.3.1 A User’s Perspective on Camera Calibration

Involved Transforms in Camera

拍照这一看似简单的过程其实蕴含了大量的坐标系转化：

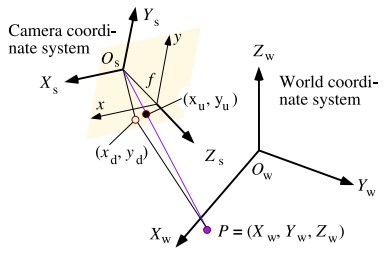

Figure: Affine From World to Camera

1. Coordinate stransform from world coordinates $(X_w,Y_w,Z_w)$ in to camera coordinates $(X_s,Y_s,Z_s)$
2. Projection from camera coordinates $(X_s,Y_s,Z_s)$ to image coorinates $(x_u,y_u)$
3. Lens distortion maps image coorinates $(x_u,y_u)$ to actually valid (distorted) coordinates $(x_d,y_d)$
4. Shift from $(x_d,y_d)$ to sensor coordinates $(x_s,y_s)$, by subtracting the principal point $(c_x,c_y)$

Lens Distortion

上述过程自然而然地发生在拍照的过程中，而在相机校准的过程中，我们需要由 actually valid (distorted) coordinates $(x_d,y_d)$ 反推 image coorinates $(x_u,y_u)$，公式如下： \(\tag{6.20} x_u = c_x+(x_d-c_x)(1+\kappa_1r_d^2+\kappa_2r_d^4+e_x)\)

where $(c_x,c_y)$ is the principal point and $r_d=\sqrt{(x_d-c_x)^2+(y_d-c_y)^2}$. The error $e_x,e_y$ are insignificant and can be assumed to be zero

Designing a Calibration Method

General procedure:

1. 已知若干个点的 world coordinates $(X_w, Y_w, Z_w)$ 及其对应的 image coordinates $(x,y)$
2. Unknown values that need to be calibrated: $c_x,c_y,f,r_{11}\text{ to }r_{33},t_1,t_2,t_3$
3. 由于未知数非常少，只要通过少量已知点的联立方程组，就能求得这些未知量

Figure: From World to Image

6.3.2 Rectification(矫正) of Stereo Image Pairs

A Multi-camera System

Only consider a a general case of a Camera $i$ or Camera $j$, where the numbers $i$ and $j$ identify different cameras in a multi-camera system.

The Camera Matrix

Intrinsic camera parameters of Camera $i$:

1. Edge lengths $e^x_i,e^y_i$ of camera sensor cells
2. Skew parameter $s_i$
3. Coordinates of the principal point $\bf{c}_i=(c_i^x,c_i^y)$ where the optical axis of Camera $i$ and its image plane intersect
4. Focal length $f_i$

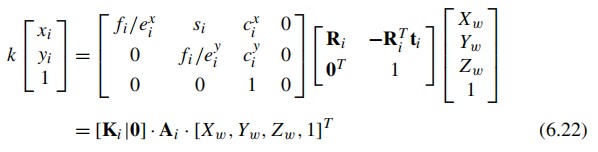

Instead of simple Eqn.(6.14), defining a camera model just based on the intrinsic parameters $f, c_x, c_y$, we have now a refined projection equation in 4D homogeneous coordinates, mapping a 3D point $P = (Xw,Yw,Zw)$ into the image coordinates $p_i = (x_i,y_i)$ of the ith camera as follows:

</div>

where $\bf{R}_i, \bf{t}_i$ denote the rotation matrix and translation vecotr in 3D inhomogeneous world coordinates, $\bf{K_i}$ denotes the intrinsic camera parameters and $\bf{A_i}$ denotes the affine matrix.

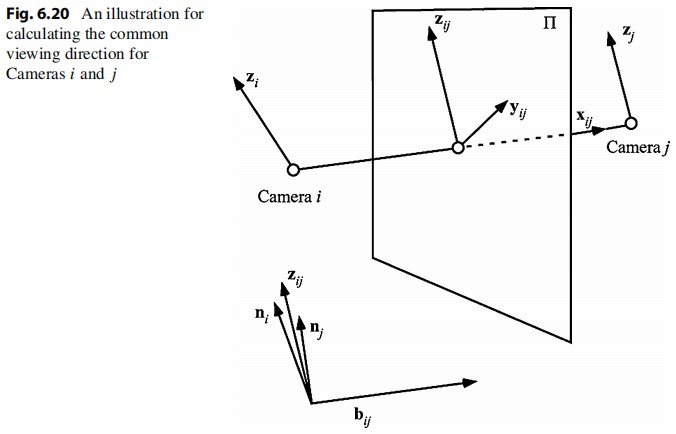

Common Viewing Direction for Rectifying Cameras $i$ and $j$

</div>

As shown in the figure above:

1. $\bf{b}_{ij}$: vector from the projection centre of Camera $i$ to $j$
2. $\Pi$: plane perpendicular to $\bf{b}_{ij}$
3. $\bf{n}_i, \bf{n}_j$: project the unit vectors $z_i^\circ$ and $z_j^\circ$ of both optical axes into $\Pi$, which results in vectors $\bf{n}_i, \bf{n}_j$ (由于我们的目的是求解 $\bf{z}_{ij}$ 的方向，因此不需要在意向量 $\bf{n}$ 的具体大小，只要保证 $\bf{n}_i, \bf{n}_j$ 等比例即可)

</div>

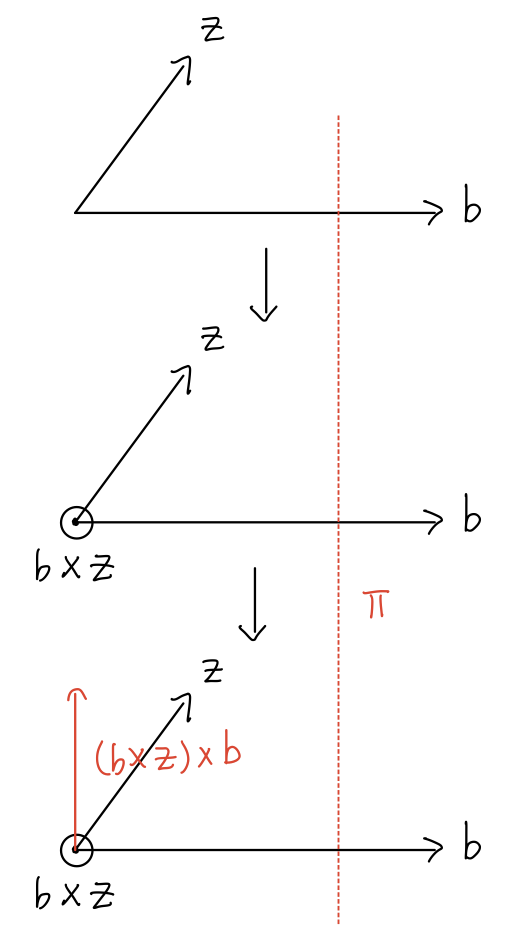

Figure: Eqn.(6.24) 的直观理解

1. $\bf{z}_{ij}^\circ$: aiming at balance treatment for both cameras, just directly add $\bf{n}_i, \bf{n}_j$

</div>

1. $\bf{x}{ij}^\circ,\bf{y}{ij}^\circ$: derive the common view direction

</div>

最后，能够得到旋转矩阵 $\bf{R}{ij}=(\bf{x}{ij}, \bf{y}{ij}, \bf{z}{ij})^T$

旋转矩阵 $\bf{R}$ 的一些性质

1. 旋转矩阵的行表示目标坐标系的基向量，例如第一行表示目标坐标系的 $x$ 轴
2. 旋转矩阵为正交矩阵，因此 $R^{-1}=R^T$

Producing the Rectified Image Pair

Define the roation matrices that rotate both cameras into their new (virtual) viewing direction: (由于 $\bf{R}i$ 是相机 $i$ 拍照过程过自然进行的坐标系旋转，因此在使用 $\bf{R}{ij}$ 时需先乘上一个 $R^T=R^{-1}$ 以消去原先的 $R$) \(\tag{6.28} \bf{R}_{i}^*=\bf{R}_{ij}\bf{R}_{i}^T\text{ and }\bf{R}_{j}^*=\bf{R}_{ij}\bf{R}_{j}^T\)

In general, when rotating any camera around its projection centre about the matrix $\bf{R}$, the image is transformed by a rotation homography (i.e. a recalculated projective transformation) \(\tag{6.29} \bf{H}=\bf{K}\cdot\bf{R}\cdot\bf{K}^{-1}\)

where, $\bf{K}_{3\times3}$ denotes intrinsic parameters of this camera:

1. $\bf{K}^{-1}$ transfers pixel coordinates into camera coordinates in world units
2. $\bf{R}$ rotates them into the common plane
3. $\bf{K}$ transfers them back into pixel coordinates

where $\hat{p}$ is the new value at pixel location and $p$ is the original image values

Creating an Identical Twin

Fundamental and Essential Matrix

$L$ denotes left camera and $R$ denotes right camera. Let $p_L,p_R$ be corresponding stereo points, i.e. the projections of a 3D point $P$ in the left and right image planes. Assume that $p_L,p_R$ are given in homogeneous coordinates. Then we have that: \(\tag{6.31} p^T_R\cdot\textbf{F}\cdot p_L=0\)

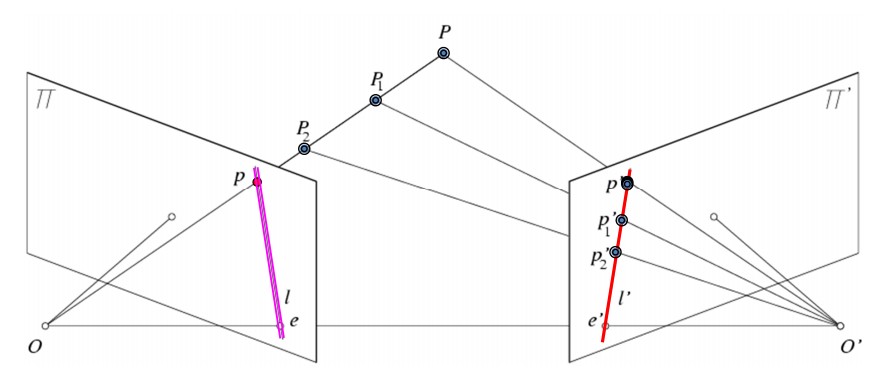

Explain 如下图所示，已知左侧 image plane 上的一点 $p_L$，则该点的实际位置一定在 $P-P_1-P_2$ 这条 直线上。再把该直线映射到右侧 image plane 上，得到直线 $l’$。Fundamental matrix 基础矩阵 $\bf{F}$ 能够将 $p_L$ 映射至 $l’$: $l’=\textbf{F}\cdot p_L$

由于 $p_R$ 一定在直线 $l’$ 上，且在 homogeneous coordinates 中，二维点 $(x,y)$ 被表示为 $(x,y,1)$，直线 $ax+by+c=0$ 被表示为 $(a,b,c)$，因此 $p_R^T\cdot l’=ax+by+c=0$

Figure: Eqn.(6.31) 的直观理解

Fundamental matrix $\bf{F}$ 与 camera matrics $\bf{K}_R,\bf{K}_L$ 间存在以下关系： \(\tag{6.33} \bf{F}=\bf{K}_R^{-T}\cdot\bf{R}[t]_\times\cdot\bf{K}_L^{-1}\)

where

</div>

Define essential matrix $\bf{E}$: \(\tag{6.35} \bf{E}=\bf{R}[t]_\times\)

Chapter 7: 3D Shape Reconstruction

7.1 Surfaces

7.1.1 Surface Topology

Orientable Surfaces

The Euler Characteristic of a Surface

Separations by Jordan Surfaces in 3D Space

7.1.2 Local Surface Parameterizations

Representation of Surface Patches

Surface Normals

Gradient Space

7.1.3 Surface Curvature

Gaussian Curvature

Normal Curvature

Principal Curvatures

Euler Formula

Mean Curvature

Theorem by Meusnier

Similarity Curvature

Chapter 9: Feature Detection and Tracking

9.1 Invariance, Features, and Sets of Features

9.1.1 Invariance

The process of taking images: \(I=C(S)\)

$I$ input images $S$ scenes $C$ camera

Procedure $\mathscr{X}$

Maps $I$ into some vertical output: \(\tag{9.1}R(I)=R(C(S))=\bf{r}\)

Invariance w.r.t. Changes in the Scene

定义一个变化函数 $N(S)$，可以包括旋转、明暗等变化： \(\tag{9.2}R(I_{new})=R(C(N(S)))\)

当 $R(I)=R(I_{new})=\bf{r}$ 时，可以说 procedure $\mathscr{X}$ is invariant to the change $N$

Invariance w.r.t. Used Camera

Similarly, if a modification $M$ in camera $C$ that $C_{mod}=M(C)$ also keep $R(I_{mod})=R(I)$, we call procedure $\mathscr{X}$ is invariant to the change $M$

9.1.2 Keypoints and 3D Flow Vectors

Keypoint (or interest point) is defined by some particular image intensities “around” it, such as a corner. 我觉得可以理解为图像的一些特征点

Descriptor is a finite vector that summarizes properties for the keypoint. A descriptor can be used for classifying the keypoint.

Feature: a keypoint and a descriptor together
